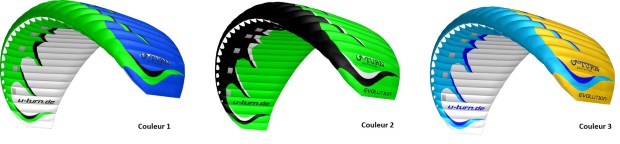

EN-A ::: EVOLUTION

The innovative beginners wing is bringing the technology of the Acro area into the training class. The EVOLUTION possesses the innovative PBV of U-Turn.

The valves in the bottom sail are providing additional aeration in extreme angles of attack and switch themselves on, if a fast pressure build-up is necessary. This is not only facilitating the folding-resistance and mistake-forgiving flying features, but also is provides a matchless incomplex starting behavior. The system is operating as well and fast as that it avoids any tendency of the canopy diving forward during the start. The glider was designed to guarantee biggest safety possible and because of that forgives mistakes of the pilot. Nevertheless a great importance was attached to the flying pleasure, which is especially notable in the thermal lift. The EVOLUTION is increasingly put to use in precision landing competitions, since the PBV is enabling a bigger spectrum of the approach angle. Especially in the low speed flight the higher angle of attack area is positively notable.

TAILLE XS S SM M L XL
Surface à plat (m2) 22 24 26 28 30,5 33,5
Surface projetée 18,8 20,52 22,23 23,94 26,8 28,75
Envergure à plat 9,95 10,39 10,81 11,22 11,71 12,27
Envergure projetée 7,9 8,26 8,59 8,92 9,31 9,75
Allongement à plat 4,5
Allongement projeté 3,32
Vitesse (km/h) 37-38
Vitesse max (km/h) 47-48
Nombres de caissons 29
Longueur de suspentage (m) 242,5 255 266,9 278,3 297,9 307,9
Poids de l'aile (kg) 4,4 4,7 4,95 5,25 5,6 6,1
Catégorie A A A A A A
PTV (kg) 55-75 55-80 65-90 75-100 95-120 105-140

The PBV works precise and without delay. “When an asymmetric collapse occurs, valve after valve opens up and aerates the glider, while the other side is optimally filled and flies without problems” – points Strobl out to an observation. And in B-stall the valves open over the whole wing span, during which the glider stays calm at a sinking of 8-10 meters: No whipping, no drifting “but completely controlled, calm sinking”, so Strobl.

At all the safety the fun at flying is not supposed to go short, Strobl reports about the other significant aspect of the specification book. That is why the wing has an AR flat of 4,5 and an innovative line geometry: 2 main lines on the A-level, 3 on B (incl. stabilos) and again 2 on the C-level to minimize the resistance. Four line diameters from 0,95 up to 2,2 mm provide the optimized balance between durability and preferably low cross-section. “As a result there is an agile flying behavior, the EVOLUTON reacts relatively direct to steering pulses and lets itself be turned flatly” so Strobl. Understandable that the EVOLUTION therefore can be moved quickly. When in trim, the wing reaches up to 39 km/h, when accelerated even up to 48 km/h – and all of that at the very high LTF-A-safety-level.
